Aprilia Dorsoduro 2011
Research the 2011 Aprilia Dorsoduro Naked with the information in our new motorcycle Buyer’s Guide. Our buyer’s guide provides new motorcycle pricing information, photos and colors, specification data and more.
Horsepower (bhp): 92 bhp
Torque (Ft Lbs): 60.5 lbs
Redline RPM: N/A RPM
Exterior
Body Material: N/A
Frame: Aluminum / Steel
Hand Grip Material: Rubber
Transmission
Number Of Speeds: 6
Transmission Brands: N/A
Transmission Types: Manual
Instrumentation
Speedometer: Standard
Tachometer: Standard
Fuel Level Warning: Standard
Wheels
Rear Wheel Diameter: 17
Front Wheel Width (in): 3.5
Rear Wheel Width (in): 6
Bags & Storage
Tank Bag: N/A
Saddle Bag(s): Not Available
Lockable Storage: N/A
Tires
Front Tire Speed Rating: ZR
Rear Tire Speed Rating: ZR
Tire Brand: N/A
Fuel Economy
US MPG (City): N/A
US MPG (Combined): N/A
US MPG (Hwy): N/A
Brakes
Front Caliper Pistons: 4
Rear Caliper Pistons: 1
Rear Brake Rotor Width (mm): N/A
Suspension & Steering
Front Suspension Brand: N/A
Front Suspension Type: Inverted Fork
Rear Suspension Type: Twin Sided Swing Arm
Seats
Seat Height (mm): 870
Seat Material: Vinyl
Seat Type: One-Piece
Other Specs
Fuel Capacity (gal): 3.2
Number Of Speakers: N/A
Adjustable Handlebars: Not Available
Horsepower (bhp): 104.5 bhp
Torque (Ft Lbs): 73.8 lbs
Redline RPM: N/A RPM
Exterior
Body Material: Plastic
Frame: Chromium Molybdenum
Hand Grip Material: Rubber
Transmission
Number Of Speeds: 6
Transmission Brands: N/A
Transmission Types: Manual
Instrumentation
Speedometer: Standard
Tachometer: Standard
Fuel Level Warning: Standard
Wheels
Rear Wheel Diameter: 18
Front Wheel Width (in): 2.2
Rear Wheel Width (in): 4.3
Bags & Storage
Tank Bag: N/A
Saddle Bag(s): Not Available
Lockable Storage: Standard
Tires
Front Tire Speed Rating: N/A
Rear Tire Speed Rating: N/A
Tire Brand: N/A
Fuel Economy
US MPG (City): N/A
US MPG (Combined): N/A
US MPG (Hwy): N/A
Brakes
Front Caliper Pistons: 2
Rear Caliper Pistons: 1
Rear Brake Rotor Width (mm): N/A
Suspension & Steering
Front Suspension Brand: WP
Front Suspension Type: Inverted Fork
Rear Suspension Type: Twin Sided Swing Arm
Seats
Seat Height (mm): 860
Seat Material: Vinyl
Seat Type: One-Piece
Other Specs
Fuel Capacity (gal): 5.2
Number Of Speakers: N/A
Adjustable Handlebars: N/A
Performance
Horsepower (bhp): 4.7 bhp
Torque (Ft Lbs): 3.5 lbs
Redline RPM: N/A RPM
Exterior
Body Material: N/A
Frame: Steel
Hand Grip Material: Rubber
Transmission
Number Of Speeds: N/A
Transmission Brands: N/A
Transmission Types: Continuously Variable (CVT)
Instrumentation
Speedometer: Standard
Tachometer: Not Available
Fuel Level Warning: Standard
Wheels
Rear Wheel Diameter: 12
Front Wheel Width (in): N/A
Rear Wheel Width (in): N/A
Bags & Storage
Tank Bag: Not Available
Saddle Bag(s): Not Available
Lockable Storage: Standard
Tires
Front Tire Speed Rating: N/A
Rear Tire Speed Rating: N/A
Tire Brand: N/A
Fuel Economy
US MPG (City): 65
US MPG (Combined): N/A
US MPG (Hwy): 75
Brakes
Front Caliper Pistons: N/A
Rear Caliper Pistons: N/A
Rear Brake Rotor Width (mm): N/A
Suspension & Steering
Front Suspension Brand: N/A
Front Suspension Type: Telescopic Fork
Rear Suspension Type: Single Sided Swing Arm
Seats
Seat Height (mm): N/A
Seat Material: Vinyl
Seat Type: One-Piece
Other Specs
Fuel Capacity (gal): 1.2
Number Of Speakers: N/A
Adjustable Handlebars: Not Available
Bimota’s DB8 superbike may look the spitting image of the 160bhp Ducati 1098-engined 2008 DB7, but it’s different in three distinct ways. It’s powered by the bigger 170bhp Ducati 1198 superbike motor, it has a pillion perch and it’s cheaper, to the tune of £1700.
The DB8 test bike we rode from their factory is easily the best Bimota we’ve ridden. The suspension is plush and controlled, the fuelling is spot-on, it’s devilishly fast, comes on sticky Dunlop D211 GP Racer tyres and thanks to its new twin seat layout and revised subframe, roomier for taller riders too.
For the first time in years Bimota now has an official UK importer, so you can actually get your hands on one of these beautifully-crafted pieces of exotica.
The DB8 is powered by Ducati’s magnificent 170bhp liquid-cooled 90° V-twin Testastretta 1198 engine, using Bimota’s own electronics. Twist the throttle and the power is smoothly delivered, instantly with no nasty hesitations or stutters. With just 189kg to push along fully-fuelled, acceleration is savage and the DB8 keeps pulling hard through the gears until the road runs out. This is a bone-fide superbike in every sense.
We’ve ridden exquisite-handling Bimotas and ones that handle so badly, you’d rather get off and walk. Fortunately, the DB8 we rode was set-up to perfection, offering plush ride quality for normal riding and lots of support and feel for when you turn the wick up. The only weak link is the brakes, which fade under hard use. The radial Brembo four-piston calipers are excellent usually, so this must be down to brake pad compound. The DB8 is nice and roomy for tall riders compared to the single seat DB7, which vastly improves the usability from a Sunday morning toy to an everyday sportsbike.
To achieve the lower price, Bimota have trimmed the spec of the DB8 slightly from the DB7, but you’re not exactly short changed. There’s still lots of lovely carbon fibre on show, high quality Marzocchi and Extreme Tech suspension components, Brembo brakes and swathes of perfectly milled, trademark Bimota billet aluminium pieces to dribble over.
The DB8 has a Ducati engine, so there should be no problem with reliability and There are now a number of officiall Bimota service points set-up at Ducati dealerships to take care of any potential problems. The build quality of a Bimota is never in question.
Exotic motorcycles like these can never be worth the big bucks asking price in the cold light of day. The DB8 isn’t worth £9205 more than a Ducati, it just isn’t. But if you think owning a hand-made, super-exclusive, fast, epic-handling, beautiful Italian motorcycle is worth paying the extra for, the Bimota DB8 won’t disappoint.
Source: http://www.motorcyclenews.com/

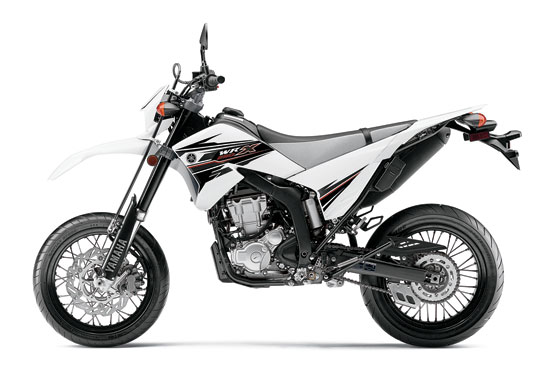

The supermoto influenced WR250X makes any commute a blast.
The 2011 Yamaha WX250X is not just a dressed up dual sport machine. The 2011 WR250X is the real deal... a 250cc machine capable of competing in Supermoto events right out of the box. Super agile handling, 17 inch wheels, and an amazing fuel injected engine package, the "X" model is ready to provide an unmatched level of riding performance and excitement. And with head turning looks, the fun factor will be right off the scale.
The cure for the common commute.
Years of experience building advanced street and dirt bikes come together in the 2011 Yamaha WR250X. The power flows freely from it's high-tech fuel-injected DOHC engine. A hybrid aluminum and steel frame ties 17 inch wheels with sticky, radial street tires together. Feel free to back it in.
The WR250X … one look tells you this is a machine ready to deliver some serious fun.
The WR250X is a jewel of Yamaha engineering. From the powerful 250cc, fuel injected, EXUP equipped, 4-valve powerplant to a real Supermoto spec chassis, the WR250X is built to offer class leading performance, uncompromised styling and unmatched riding excitement. Exceeding your expectations.
Source: Total Motorcycle
2011 Yamaha WR250X - USA Specifications
MSRP: * $6,590 (White/Black) Available from September 2010/CA model October 2010
Engine
Type 250cc liquid-cooled DOHC 4-stroke; 4 valves
Bore x Stroke 77.0 x 53.6mm
Compression Ratio 11.8:1
Fuel Delivery Fuel injection
Ignition Direct ignition coil
Transmission Constant-mesh 6-speed; multiplate wet clutch
Final Drive Chain
Chassis
Suspension / Front Inverted fork; fully adjustable, 10.6-in travel
Suspension / Rear Single shock; fully adjustable, 10.4-in travel
Brakes / Front Hydraulic single-disc brake, 298mm
Brakes / Rear Hydraulic single-disc brake, 230mm
Tires / Front 110/70-17
Tires / Rear 140/70-17
Dimensions
Length 83.1 in
Width 31.9 in
Height 46.9 in
Seat Height 35.2 in
Wheelbase 56.1 in
Ground Clearance 10.2 in
Fuel Capacity 1.9 gal
Fuel Economy** 71 mpg
Wet Weight*** 302 lb
Other
Warranty 1 Year (Limited Factory Warranty)
2011 Norton Commando 961 Sport - Specifications
American MSRP: Model may not be available in the USA
Canadian MSRP: Model may not be available in Canada
United Kingdom MSRP: Price: £12,495 British Pounds (Price shown includes the 'On the Road' costs and VAT for the UK.)
Please note, the Commando 961 Cafe Racer and the Commando 961 Sport are currently only available in the U.K. and will be made available internationally to purchase from your nearest Norton dealer in the near future.
Frame
- Frame: Steel tubular with integral oil tank
- Swing arm: Twin-sided steel construction
- Wheelbase: 1420mm (55.9 in)
- Rake: 24.5 degrees
- Trail: 99mm (3.9 in)
- Front suspension: 43mm Ohlins RWU - Adjustable preload, compression damping.
- Rear suspension: Ohlins reservoir-style twin shocks - Adjustable ride height, preload, compression
- Front wheel: 36 spoke 3.50 x 17” Chrome Rim
- Rear wheel: 40 spoke 5.0 x 17” Chrome Rim
- Front tyre: 120/70 x 17”
- Rear tyre: 180/55 x 17”
- Front wheel travel: 115mm (4.53 in)
- Rear wheel travel: 100mm (3.94 in)
Brakes & Hydraulics
- Front brakes: Full Brembo system, twin Brembo 320mm semi-floating hi
carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
- Rear brakes: Full Brembo system, single Brembo 220mm disc, Brembo 2 piston “Gold Line” calliper
- Brembo “Gold Line” front brake master cylinder
- Brembo “Gold Line” hydraulic clutch master cylinder
- Brembo rear brake master cylinder
- Brembo hydraulic clutch actuation slave cylinder
Transmission
- Gear box: constant mesh 5 speed
- Final drive: 525 “O” ring chain
- Clutch: Wet multi-plate hydraulic lifter
- Electric start Power Assembly
- Engine type: New engine developed by Norton and F1 engine builders, MCT of Oxfordshire, England. Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
- Displacement: 961cc
- Cooling system: Air
- Valve actuation: Push rod, 2 valves per cylinder
- Bore x stroke: 88mm x 79mm
- Compression ratio: 10.1:1
- Power: 80PS @ 6500RPM
- Torque: 90Nm @ 5200RPM
- Ignition: Crank fired electronic
- Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter
Electronics & Controls
- Charging system: 300 watt hi-output charging system
- Instrumentation: Norton electronic analogue speedo & tachometer
Miscellaneous
- Fuel tank capacity: 17 litres (4.5 US gallon)
- Dry weight: 188kg (414.5 lbs)
- Seat height: 813mm (32 in)
- Steering: Fully machined billet yokes, triple clamp lower yokes
- Handlebars: Tubular steel in chrome
Colour Options
- Black & Gold
- Red & Gold
- Yellow & Black
- Silver, Red & Black
Price: £12,495
Price shown includes the 'On the Road' costs and VAT for the UK.
Source: http://www.totalmotorcycle.com/photos/2011models/2011-Norton-Commando961Sport.htm
2011 Norton Commando 961 SE - Specifications
American MSRP: Model is available in the USA. See dealer for Pricing
Canadian MSRP: Model is available in Canada. See dealer for Pricing
United Kingdom MSRP: Price: £15,995 British Pounds (Price shown includes the 'On the Road' costs and VAT for the UK.)
Frame
- Frame: Steel tubular with integral oil tank
- Swing arm: Twin-sided steel construction
- Wheelbase: 1420mm (55.9 in)
- Rake: 24.5 degrees
- Trail: 99mm (3.9 in)
- Front suspension: 43mm Ohlins RWU
- Rear suspension: Ohlins reservoir-style twin shocks
- Front wheel: 3.50 x 17” BST Carbon Fibre
- Rear wheel: 5.0 x 17” BST Carbon Fibre
- Front tyre: 120/70 x 17”
- Rear tyre: 180/55 x 17”
- Front wheel travel: 115mm (4.53 in)
- Rear wheel travel: 100mm (3.94 in)
Brakes & Hydraulics
- Front brakes: Full Brembo system, twin Brembo 320mm semi-floating hi
carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
- Rear brakes: Full Brembo system, single Brembo 220mm disc, Brembo 2 piston “Gold Line” calliper
- Brembo “Gold Line” front brake master cylinder
- Brembo “Gold Line” hydraulic clutch master cylinder
- Brembo rear brake master cylinder
- Brembo hydraulic clutch actuation slave cylinder
Transmission
- Gear box: constant mesh 5 speed
- Final drive: 525 “O” ring chain
- Clutch: Wet multi-plate hydraulic lifter
- Electric start Power Assembly
- Engine type: New engine developed by Norton and F1 engine builders, MCT of Oxfordshire, England. Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
- Displacement: 961cc
- Cooling system: Air
- Valve actuation: Push rod, 2 valves per cylinder
- Bore x stroke: 88mm x 79mm
- Compression ratio: 10.1:1
- Power: 80PS @ 6500RPM
- Torque: 90Nm @ 5200RPM
- Ignition: Crank fired electronic
- Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter
Electronics & Controls
- Charging system: 300 watt hi-output charging system
- Instrumentation: Norton electronic analogue speedo & tachometer
Miscellaneous
- Fuel tank capacity: 17 litres (4.5 US gallon)
- Dry weight: 188kg (414.5 lbs)
- Seat height: 813mm (32 in)
- Steering: Fully machined billet yokes, triple clamp lower yokes
- Handlebars: Tubular steel in chrome
Carbon Pack
- Front mud guard
- Chain guard
- Rear wheel hugger
- Rear number plate hugger
- Headlight mounting
- Front wheel
- Rear wheel
Colour Options
- Black & Gold
Price: £15,995
Price shown includes the 'On the Road' costs and VAT for the UK.
Evolution in the name of competitiveness: this is the mission of Aprilia’s RXV 4.5/5.5. Experience gained from Aprilia Racing’s excellent results in the Enduro World Championship has led to Aprilia designers and engineers transferring even more race technology into this amazing production motorcycle.
Everybody involved with the RXV has worked hard and in close co-operation to introduce a number of major improvements compared to last year’s motorcycle, making this year’s model even more “race ready”, and better able to deliver complete satisfaction to demanding amateur and professional riders
2011 Aprilia RXV 450 / RXV 550 Features
DESIGN: DETAILS COUNT
As with all Aprilias, a tremendous amount of care and attention has been lavished on even the smallest details on the RXV.
As a result the RXV boasts a unique, unmistakable styling that is nevertheless fully functional in achieving the sort of unrivalled performance that a genuine competition motorcycle demands.
Essential, decisive lines convey a sensation of lightness and build quality. The RXV’s designers have been eager to incorporate the features that distinguish all Aprilias, and have launched a whole new type of off-road motorcycle. You simply can’t fail to appreciate technology like the V twin engine, mixed steel trellis frame and sculpted swingarm. The tail and rear side panels are totally different in styling from traditional off-road designs. Whichever way you look at it, the RXV presents a host of stunning technical solutions, all enhanced by original racing colours to express the aggressive nature of this born-to-race mean machine.
Every aspect of the bike features intelligent design solutions. Fixed air ducts, for example, allow the fuel tank to tilt up for easy access to the air filter box.
Everything about the RXV is dedicated to winning races. The quest for technical perfection has led the design team to improve even the most insignificant details on the basis of input from the many time champions who have raced the RXV.
ENGINE: CONTINUOUS EVOLUTION
The amazing 45.2 engine is, of course, the centre piece of RXV technology. Aprilia was the first manufacturer in the world to believe in the validity of V twin architecture in a market segment in which all other marques still cling rigidly to single cylinder engines. Aprilia’s high-tech V twin design has already proved 100% reliable in competition. Even homologation for road use has not compromised the technology and performance of this exceptional engine, which is produced entirely by Aprilia.
Since the earliest stages of the design process, the 45.2 has evolved to keep pace with chassis development and to give the RXV an unbeatable mix of power and handling.
The 77° V angle is the result of extensive testing, aimed not only at boosting power but also at reducing vibration. As a result Aprilia’s engineers have been able to eliminate engine balancer shafts.
Despite this the 45.2 engine still vibrates far less than any single cylinder alternative.
The cylinders themselves are integrated in the crankcase and have replaceable wet liners. This unique layout has allowed the engine ancillaries to be arranged in a way that achieves extremely compact dimensions. The results are amazing: the Aprilia V twin is one of the most compact twins in the world, and smaller in size than many singles of similar displacement.
All design choices have been taken in order to obtain maximum ridability and an extended power band for off-road riding.
The sophisticated electronic engine management system, developed by Aprilia Racing, incorporates numerous innovations for the off-road sector.
The injection system features 38 mm throttle bodies (40 mm on the 550) and is managed by a programmable control unit. The ECU is able to switch between two different mappings at the touch of a switch on the handlebars.
This extremely useful innovation offers a full power mapping for use in conditions of good grip, and a second, softer mapping for smoother power delivery under challenging conditions. The system provides an extremely valid aid to control and has been welcomed both by expert riders (the system was actually tested in the final phases of the world championship) and by off-road fans in general. All you need is one quick click to select exactly the right power delivery for the circumstances.
The new ECU and stepper motor throttle bodies make starting much easier under all conditions, and deliver smoother and more controllable power too.
Reduced unitary displacement has allowed Aprilia to develop an extremely compact and lightweight crankshaft. The engine is more responsive to variations in throttle opening as a result, and the bike as a whole is faster and more manoeuvrable thanks to the reduced gyroscopic effect from the crankshaft.
In the MY ’09 the flywheel has increased in weight to improve power delivery and achieve a smoother ride.
The single overhead cam configuration with four titanium valves per cylinder head represents an ideal compromise between compact size, light weight and high performance.
Thanks to its advanced technology, the 45.2 is also an extremely silent running and ecological engine.
Technology, after all, should mean reliability and longevity as well as high performance. The 45.2 engine touches new heights in this direction, and permits extremely easy access to parts requiring regular maintenance like the spark plugs, oil filter and air filter.
Just as much effort has been put into weight reduction, and the 45.2 engine sets a new record for a V twin with an electric starter. Abundant use has been made of prestige lightweight materials. The central crankcase sections are in aluminium-silicon alloy; external engine casings are in magnesium; the valves are in titanium; and all gears are exceptionally light in weight.
A closer look at the unique characteristics of the 45.2 engine:
- Electronic fuel injection system with 38 mm throttle bodies (40 mm on the 550), complete with stepper motors and a new ECU that gives even better performance.
- Dry sump lubrication with separate external reservoirs for gearbox and engine oil to avoid contaminating engine oil with particles of clutch friction lining, and for extended lubricant life.
- Single overhead cam with four valve heads
- Single piece crankshaft
- Cylinders integrated in the crankcase with wet liners
- Maximum engine speed 12,000 rpm (450 version)
CHASSIS: LIGHTER THAN EVER
An uncompromising machine like the RXV demands a great chassis.
The perimeter frame has been developed in conjunction with the engine, with the result that the 2011 RXV has lost 2 kg in weight. The tubular steel trellis structure is interference fitted to forged aluminium side members to form an extremely rigid whole.
The engine itself forms an integral part of the chassis, acting as a load bearing element and contributing to overall rigidity.
The variable section aluminium alloy swingarm has been made even lighter to reduce rigidity and improve traction.
The rising rate suspension linkage is damped by a fully adjustable Sachs monoshock with piggy back cylinder and two different hydraulic settings for high and low speeds.
The calibration of the rear suspension has been modified to improve stability and control over rough surfaces.
The 45 mm upside down fork also boasts new settings for greater high speed stability and improved damping over stony ground, and can be adjusted to suit the needs of more expert users.
BRAKING SYSTEM
The advanced technology and high performance of the RXV chassis are reflected in a superb braking system. The RXV features Nissin calipers and lightweight wave discs (270 mm at the front) for maximum braking control even under the most challenging conditions.
The 240 mm rear disc is braked by a single piston caliper (lighter than on the previous model) for a perfect combination of power and control.
COMPONENTS: READY TO RACE
All parts of the Aprilia RXV are of the very best quality available.
Among the many prestige components are:
- Digital instruments: ultra-lightweight, compact and designed to provide all the information a rider could possibly need.Magura tapered aluminium handlebars with no cross member for optimal elasticity and control
- High luminosity LED tail light
- Aluminium oil filter cover
- New race-derived electrical system
- Racing sponge air filter
MAIN IMPROVEMENTS
- New aluminium swingarm with cast body and hydroformed members. The new swingarm is significantly lighter and more flexible, giving clear benefits in improved traction and better stability over rough ground (ruts/ridges).
- Lighter and more compact rear brake caliper.
- New lateral exhaust system homologated to FIM regulations.
- Fuel system with stepper motor throttle body control and new ECU. This development makes starting easier under all conditions and reduces weight significantly too. Power delivery is also smoother and easier to control.
- Simplified, lighter rear frame for a reduced seat height and a more comfortable seating position for riders of “all sizes”.
- Lower seat height (-5 mm).
- Reduced weight (-2 Kg).
2011 Aprilia RXV 450 / RXV 550 - Specifications
American MSRP: RXV 5.5 $ 9299 - RXV 4.5 $ 8699 USD
Canadian MSRP: $NA CDN
Engine: 77° V twin four stroke. Liquid cooled. Single overhead cam with rocker operated exhaust valves, chain timing drive. 4 valve heads with titanium valves.
Fuel: Lead-free petrol.
Fuel system: Integrated electronic engine management system controlling ignition and fuel injection, with two power mappings. Throttle body: 38 mm (40 mm).
Ignition: Electronic.
Starting: Electric starting.
Exhaust: Euro 3 lateral exhaust. Conforms to FIM regulations
Generator: 340 W
Lubrification: Dry sump with external oil tank. Separate gearbox lubrication.
Gear box: 5 speed. Enduro gear ratios: 1st 12/31 2nd 13/25 3rd 15/23 4th 19/24 5th 21/22
Clutch: Cable operated multi-plate wet clutch.
Primary drive: Spur gears. Transmission ratio: 22/56.
Final drive: Chain. Transmission ratio: 15/50 (Z14 sprocket supplied).
Frame: Chrome-molybdenum steel perimeter frame with aluminium alloy vertical members. Steering head (rake) angle 27°. Lightweight rear frame.
Front suspension: Ø 45 mm upside down fork with two adjustments.
Rear suspension: Aluminium swingarm with cast body and hydroformed members. Hydraulic monoshock with compression and rebound adjustment.
Brakes: Front: Ø 270 mm floating disc in stainless steel with aluminium flange. Nissin floating caliper. Rear: ? 240 mm stainless steel disc with floating caliper.
Wheels: Black anodised aluminium alloy. Front: 1.60 x 21” Rear: 2.15 x 18”
Tyres: Front: Metzeler 90/90 x 21” Rear: Metzeler 140/80 x 18”
Dimensions: Overall length: 2,222 mm Overall width: 800 mm Ground clearance: 396 mm Seat height: 941 mm Wheelbase: 1,495 mm
Fuel tank capacity: Capacity 7.8 litres \
Source: http://www.totalmotorcycle.com/
WHO ARE YOU?
SR 50: the legend rides on, and gets better every year! When the SR 50 first came out, it was already in a class of its own. The “sports scooter” category was invented specially for it.
Now, the SR 50 features an aggressive new design, inspired by the RSV 1000 R Factory, but there’s more to it than style! The SR 50 incorporates numerous technical solutions derived directly from Aprilia’s world-beating maxi, to bring you the tops in equipment and the highest level of active safety you can get. With advanced technology, a legendary name, and guaranteed performance, the new SR is destined to be yet another Aprilia success story. Especially if ridden by people like you
2011 Aprilia SR50 Features
EVOLUTION OF THE SPECIES
Ever since it was first introduced, the SR has been the preferred scooter of the Aprilia Racing Team, and is used extensively at trials and race meetings to get quickly between pit lane and the paddock. Aprilia’s top riders can also be seen riding their SRs around town in total freedom. Just like you.
BIG BIKE LOVER?
So you know all about sports scooters. You’ve read up on scooter technology and performance too. The you know you need the new SR 50.
Just to refresh your memory, the SR 50 was the first scooter to fit 13” wheels, the first with liquid cooling, the first with a double disc braking system, and the first with a direct injection engine.
And finish and equipment are superbike level. Just look at the mirrors, integrated footrests, and open brake master cylinders. The SR 50 has to be yours!
STYLE FANATIC?
Maybe you’re one of those who remove original transfers and put your own stickers on instead. With all the trouble that Aprilia takes to give you such great graphics! Oh well, that’s up to you! But we’d like to know that we’ve styled your new SR in a way can be proud of, with an uncompromising sports look to reflect its cutting-edge technology, we’ve even designed a completely new steel frame for improved rigidity for unrivalled agility. And you can’t fail to appreciate the SR’s superior multi-functional digital instruments panel, twin halogen headlights, motorcycle-style switchgear and transponer anti-theft system.
In fact, there’s only one thing missing…you! The SR is waiting.
SR, ONE OF THE PACK?
Maybe you use tour scooter to get around with your friends. If so, on an SR you’re sure to attract the right company! SR riders always have something in common. They like aggressive style, streamlined aerodynamics and impeccable handling when they see them. Everybody’s different, but on an SR everybody’s got something to share.
If we wanted to, we could write a book about the SR 50 R's brand new, active matrix, digital instrument panel. After all, it does have analog rev counter and a large LCD display for fuel level, coolant temperature, clock, speedometer, odometer, dual trip counters, journey time, maximum speed, 16 stage timer, battery voltage, and complete diagnostic system, but we shall limit ourselves to pointing out that all these functions are accessible from convenient handlebar controls.
RESPONSIBLE YOUNG MAN!
Maybe you fit in neatly with one of the personalities described above – or maybe you don’t! In any case, we’re sure you’re a responsible young man, and your family’s pride and joy! So it’s just as well that the SR has what it takes to keep everybody happy, including advanced safety systems like double disc braking, high performance shock absorbers, and a host of high-tech components.
However you see yourself, here are the good reasons for riding an SR. Don’t forget to tell your family!
1. Sleek, aggressive styling, to ensure that all eyes turn your way.
2. Motorcycle road-holding, precision, aglility and total safety.
3. Double disc brakes for bags of controllable stopping power and fantastic active safety.
4. Robust construction, to make sure that your SR remains faithful mile after mile after mile.
5. A digital instrument panel with on board computer
6. Transponder anti-theft system and provision for the body guard armoured cable lock. Because you can never be too sure.
7. The right size, not too small not too big. As real sports scooter should be.
8. Attention to detail to satisfy the most demanding.
9. Enviable equipment, including powerful 35 watt headlights, storage compartment in the seat nose, motorcycle style switchgear and number plate holder, and rear suspension with an open coloured spring
2011 Aprilia SR50 - Specifications
American MSRP: $3,099 USD
Canadian MSRP: See dealer for pricing
Engine: Liquid cooled horizontal single cylinder two stroke. Electronic direct fuel injection.
Bore x Stroke: 40 x 39.3 mm
Total displacement: 49 cc
Compression ratio: 11.5:1
Ignition: High power inductive ignition
Starting: Electric
Generator: Flywheel-magneto, 165 W – 12 V.
Gear box: Continuous automatic variator
Clutch: Automatic centrifugal dry clutch
Primary drive: V belt
Final drive: Gears in oil bath.
Frame: Split single cradle frame in high tensile strength steel tube
Front suspension: Hydraulic fork, 90 mm wheel travel
Rear suspension: Engine unit acting as swingarm; frame linkages on two radial silent block mountings; wheel travel 70 mm. Rear: 190 mm stainless steel disc; racing caliper with twin opposed 30 mm pistons
Brakes: Front Brake 7.5” stainless steel disc; racing caliper with twin opposed 1.3” pistons Rear Brake 7.5” stainless steel disc; racing caliper with twin opposed 1.2” pistons
Wheels: Five spoke, light alloy wheels front and rear: 3.50 x 13"
Tyres: Tubeless. Front and rear: 130/60 x 13”
Dimensions: Overall length: 1860 mm Overall width: 705 mm Overall height: 1120 mm Seat height: 32.2" Wheelbase: 50.78"
Fuel tank capacity: 1.85 gals
Intake: Reed valve
Other: Fuel injection Electronically controlled, air assisted, direct injection into the combustion chamber. Injector type EFI low flow injector. Direct injection system External opening, SMD 8 micron medium spray. Pressure regulator Pressure differential maintained at 2.5 bar. Throttle body Ø 18 mm throttle body with integrated TPS (Throttle Position Sensor). Air compressor Driven off crankshaft, lubricated by air-oil mix in crank chamber. Fuel pump 6.5 – 8 bar, high pressure pump with low electrical power absorption, < 0.5 A. Electronic Control Unit 8 Hz clock speed, 22 pin.
Source: http://www.totalmotorcycle.com/
The KTM 50 SX Mini is the perfect bike for beginner riders. The Mini includes premium features like adjustable seat height, long travel suspension, disc brakes at the front and rear as well as the best power output available in the class.
2011 KTM 50 SX Mini - USA Specifications
MSRP: $TBA USD
Engine type Single cylinder, 2-stroke
Displacement 49 cc
Bore x stroke 39.5 x 40 mm (1.55 x 1.57")
Starter Kickstarter
Transmission Single gear automatic
Carburetor Dell'Orto PHVA 12 XS
Engine lubrication Separate Lubrication
Primary drive 61:33
Final drive 10:42
Cooling Liquid cooled
Clutch Centrifugal clutch (adjustable)
Ignition Seletra 2p D36
Frame Double grinded central-double-cradle-type frame
Subframe Steel
Handlebar Pro Taper, Aluminium Ø 22 mm (0.87")
Front suspension Marzocchi Ø 32 mm (1.26")
Rear suspension WP mono shock
Suspension travel front/rear 110 / 171 mm (4.33" / 6.73")
Front brake Disc brake Ø 160 mm (6.3")
Rear brake Disc brake Ø 140 mm (5.51")
Rims, front/rear 1.6 x 10"; 1.6 x 10" Alu
Tires, front/rear 2.50 x 10"; 2.75 x 10"
Chain 1/2 x 3/16"
Main silencer Aluminium
Steering head angle 67.4°
Wheel base 914 mm (35.98")
Ground clearance (unloaded) 184 mm (7.24")
Seat height 558 mm (22")
Tank capacity approx. 2 liters (0.53 gal)
Weight (no fuel) approx. 37.8 kg (83.33 lbs)
2011 KTM 50 SX Mini - Canada Specifications
MSRP: $TBA CDN
Engine type Single cylinder, 2-stroke
Displacement 49 cc
Bore x stroke 39.5 x 40 mm (1.55 x 1.57")
Starter Kickstarter
Transmission Single gear automatic
Carburetor Dell'Orto PHVA 12 XS
Engine lubrication Separate Lubrication
Primary drive 61:33
Final drive 10:42
Cooling Liquid cooled
Clutch Centrifugal clutch (adjustable)
Ignition Seletra 2p D36
Frame Double grinded central-double-cradle-type frame
Subframe Steel
Handlebar Pro Taper, Aluminium Ø 22 mm (0.87")
Front suspension Marzocchi Ø 32 mm (1.26")
Rear suspension WP mono shock
Suspension travel front/rear 110 / 171 mm (4.33" / 6.73")
Front brake Disc brake Ø 160 mm (6.3")
Rear brake Disc brake Ø 140 mm (5.51")
Rims, front/rear 1.6 x 10"; 1.6 x 10" Alu
Tires, front/rear 2.50 x 10"; 2.75 x 10"
Chain 1/2 x 3/16"
Main silencer Aluminium
Steering head angle 67.4°
Wheel base 914 mm (35.98")
Ground clearance (unloaded) 184 mm (7.24")
Seat height 558 mm (22")
Tank capacity approx. 2 liters (0.53 gal)
Weight (no fuel) approx. 37.8 kg (83.33 lbs)
2011 KTM 1190 RC8R Red Bull Limited Edition
The 1190 RC8 R Red Bull Edition bikes come individually numbered with limited edition IDM Red Bull paint and graphics and have all the same features of the 1190 RC8 R plus a closed course club race kit which includes: an Akrapovic Evo4 titanium exhaust system, modified valve timing, a thinner spec cylinder head gasket and. Club Race Kits are for closed course competition only.
2011 KTM 1190 RC8R Red Bull Limited Edition - USA Specifications
MSRP: See KTM Dealer for prices
Engine type 2-cylinder, 4-stroke, V 75°
Displacement 1195 cc
Bore x stroke 105 x 69 mm (4.13 x 2.72")
Performance (homologated) 125 kW @ 10250 rpm
Max. torque 123 Nm @ 8000 rpm
Compression ratio 13.5:1
Starter/Battery Electric Starter/12 V 11.2 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin EFI (throttle body 52 mm (2.05"))
Control 4 V/DOHC
Lubrication Pressure lubrication with 3 Eaton pumps
Engine lubrication Motorex, SAE 10W-50
Primary drive 40:76
Final drive 17:37
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Motor Management Keihin EMS
Frame Chromium-Molybdenum trellis frame, powder-coated
Subframe Aluminium
Handlebar Aluminium stump handlebar
Front suspension WP-USD Ø 43 mm
Rear suspension WP-Monoshock
Suspension travel front/rear 120/120 mm (4.7 / 4.7")
Front brake 2 x Brembo four piston, radially bolted caliper, brake disc 320 mm (12.6")
Rear brake Brembo two piston, fixed caliper, brake disc 220 mm (8.66")
Rims, front/rear Cast aluminium wheels 3.5 x 17"; 6 x 17"
Tires, front/rear 120/70 ZR 17; 190/55 ZR 17
Chain X-ring 5/8 x 5/16"
Main silencer Stainless steel underfloor silencer with regulated catalytic converter
Steering head angle 66.7°
Trail 97 mm (3.82")
Wheel base 1425 mm (56.10")
Ground clearance (unloaded) 110 mm (4.33")
Seat height 805/825 mm (31.69/32.48")
Tank capacity approx. 16.5 liters/3.5 liters reserve (4.36/0.92 gal)
Weight (no fuel) approx. 182 kg (405.23 lbs)
2011 KTM 1190 RC8R Red Bull Limited Edition - Canada Specifications
MSRP: See KTM Dealer for prices
NA
2011 KTM 1190 RC8R Red Bull Limited Edition - International Specifications
MSRP: See KTM Dealer for prices
Engine type 2-cylinder, 4-stroke, V 75°
Displacement 1195 cc
Bore x stroke 105 x 69 mm (4.13 x 2.72")
Performance (homologated) 125 kW @ 10250 rpm
Max. torque 123 Nm @ 8000 rpm
Compression ratio 13.5:1
Starter/Battery Electric Starter/12 V 11.2 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin EFI (throttle body 52 mm (2.05"))
Control 4 V/DOHC
Lubrication Pressure lubrication with 3 Eaton pumps
Engine lubrication Motorex, SAE 10W-50
Primary drive 40:76
Final drive 17:37
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Motor Management Keihin EMS
Frame Chromium-Molybdenum trellis frame, powder-coated
Subframe Aluminium
Handlebar Aluminium stump handlebar
Front suspension WP-USD Ø 43 mm
Rear suspension WP-Monoshock
Suspension travel front/rear 120/120 mm (4.7 / 4.7")
Front brake 2 x Brembo four piston, radially bolted caliper, brake disc 320 mm (12.6")
Rear brake Brembo two piston, fixed caliper, brake disc 220 mm (8.66")
Rims, front/rear Cast aluminium wheels 3.5 x 17"; 6 x 17"
Tires, front/rear 120/70 ZR 17; 190/55 ZR 17
Chain X-ring 5/8 x 5/16"
Main silencer Stainless steel underfloor silencer with regulated catalytic converter
Steering head angle 66.7°
Trail 97 mm (3.82")
Wheel base 1425 mm (56.10")
Ground clearance (unloaded) 110 mm (4.33")
Seat height 805/825 mm (31.69/32.48")
Tank capacity approx. 16.5 liters/3.5 liters reserve (4.36/0.92 gal)
Weight (no fuel) approx. 182 kg (405.23 lbs)
Source: http://www.totalmotorcycle.com/
2011 Honda NT700V
Fully equipped with a fairing, interlinked saddlebags and a strong 680cc V-twin engine, the NT700V is ready for any journey you can dream up. It's a touring machine that's fun to ride and ready to carry you to work and play seven days a week. With such impressive credentials, the NT700V can turn a daily commute into riding pleasure and then carry you off on that weekend adventure.
2011 Honda NT700V Features and Benefits
Introducing the Honda NT700V, newly arrived here in the U.S., and the perfect combination of cross-town commuter and cross-country capability that's been wowing Europeans for over a decade. Think of it this way: If the ST1300 had a little brother, it would be the NT700V. Plenty nimble to eat up around-town urban assaults, and plenty plush and feature-packed for the luxurious long haul.
From this machine's potent, liquid-cooled, fuel-injected 680cc V-twin, disc brakes (with optional ABS) and bulletproof shaft drive to its integrated saddlebags and weather-cheating adjustable windscreen and bodywork, the NT700V rolls out as the ultimate light-weight tourer/commuter for both entry-level and seasoned riders alike. In other words, the best of both worlds.
Fuel-Injected Fun.
The NT700V's electronic fuel injection system delivers superb throttle response and performance every time out, which means hassle-free fun for you.
Fuel Injection: Electronic Fuel Injection delivers precise air/fuel mixture for optimal performance in all conditions, while ensuring quick, hassle-free starts in the cold or at high altitudes.
Liquid-cooled 680cc SOHC V-twin Engine: The eight-valve, 52° V-twin four-stroke powerplant delivers heaps of smooth low- and high-end muscle tuned for both urban and highway conditions.
Integrated Saddlebags: Aerodynamic, lockable and roomy enough for groceries or overnight gear, the NT700V's built-in saddlebags notch up the convenience factor on this bike big time.
Baggage Claim.
Sleek, integrated saddlebags provide ample, lockable storage for your totables, whether you're headed to the market—or Maine.
Options:
The NT700V. Equal parts cross-town commuter and long-distance tourer. Or, as we like to say, the machine that balances nimble performance on the urban front with convenience and comfort features for the long haul.
You have two NT700Vs to choose from: our performance-packed standard version or, for those riders seeking that extra little bit of on-road stopping control in adverse conditions, look no further than our Combined Anti-lock Braking System (C-ABS)-equipped edition.
Source: http://www.totalmotorcycle.com/
The Diavel Carbon embodies the true nature of the Diavel concept, where performance combines with style to celebrate Italian engineering at its best. Lightweight composites and milled aluminium components meld the two worlds of sport and style with features that are both visually beautiful and functionally high-performance.
Hard to be seen, easy to be noticed.Even when disappearing in a split second, everyone will always be captivated. This is the magic of Diavel.
The design sets new standards in beauty, innovation and sophistication, while outstanding agility and handling are encased within a muscular body which moves with 162 hp. Its astonishing power can be managed in three different Riding Modes and with the assurance of the Ducati Safety Pack (ABS + Ducati Traction Control). Ducati has created something truly magic.
Preceded by rumors, photos stolen and a lot of waiting, we received word is final. EICMA, the International Motorcycle Exhibition in Milano at Rho-November 2 to 7, will mark the first official appearance in public for the new Ducati.
Livery and specifications are defined and Ducati is ready to make his dream a reality. While waiting for the official presentation of Ducati also comes the anticipation of the name of this great news that, inspired by an expression in the dialect of Bologna, will be called "DIAVEL", or "devil."
A name that has its own particular history that stems from an incident that occurred during the development of the bike.
In fact, once set up the first prototype, with all the technical staff around the new creature "made in Borgo Panigale," a sentence in the dialect of Bologna said the original lines of the bike and winning, "ignurant comm 'to diavel!" Which, bringing the statement in Italian, it would sound "is as bad as the devil."
From that moment, "DIAVEL" became the name of "inside" the bike, to replace the internal code of the project. The decision to keep it for the production was, as you can imagine, a logical consequence.
Genesis similar to this, even if we are talking about almost 20 years ago, characterized another icon Ducati, the Monster, whose name was inspired by the now famous statement, also in the dialect of Bologna, "is just the 'n monster! "or" is just a monster. "
As for Monster, the name DIAVEL then becomes the expression of that unique, passionate, further characterized by high technology and a unique design distinguishes every Ducati motorcycle produced.
At the same time it is also easy to see what this new bike and, while bound to tradition Ducati, destined to mark an important new chapter in respect of the aesthetic and performance.
The new Ducati DIAVEL be extremely accurate in every detail, carved in every muscle, comfortable and innovative. As in any real Ducati, the performance will play a very important role. Torque, power and dynamic behavior will be a new benchmark, thanks to the Testastretta engine 11 ° - the same as the Multistrada 1200 - and weighs only 207 kg dry, which promises superbike acceleration and speed and agility to change direction .
A relaxed riding position, the suspension comfort and safety are guaranteed by the ABS, traction control and standard riding mode, will satisfy even those riders who love to drive in peace, enjoying the street, landscape and all the characteristics of This new dream Ducati.
Concept
The Diavel project was born when Ducati designers applied their wish-list of bike “basic instincts” to a blank canvas. With a “what if?” approach to creating a dream bike, they sketched inspiring shapes which became a lower and longer motorcycle. “The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks,” explains the team at Ducati Design responsible for the project. “With the front wheel kept close to the Diavel’s body and using the short tail of a sport bike, we were able to blend this muscular design with a chassis that matched.”
Design
The stance of the Diavel is that of readiness, dominance, and confidence bordering on superiority. With lateral radiators adding muscle to its broad “shoulders,” which then taper down across the engine and into the belly-fairing with oil cooler, the athlete took shape. A massive 240 section rear tyre was a perfect example of how Diavel designers used a no-compromise attitude when applying their wish list of features. The sheer width of rubber communicates so much power and style that the R&D team vowed to find a way to make it handle - even if they knew the image would send a seismic shock through the industry. The Diavel is a true Ducati, born from a passion for motorcycling and designed to deliver authentic Ducati performance in every respect.
Carbon
The Diavel Carbon embodies the true nature of the Diavel concept, where performance combines with style to celebrate Italian engineering at its best. Lightweight composites and milled aluminium components meld the two worlds of sport and style with features that are both visually beautiful and functionally high-performance.
Riding Mode
The Diavel incorporates the very latest in innovative Ducati technologies, including the recently introduced electronic Riding Modes. Selectable from the left-hand switchgear - even while riding - the choice of three pre-set modes are programmed to instantly change the character of the Diavel. The three modes are enabled by combining class-leading technologies such as Ride-by-Wire (RbW) and Ducati Traction Control (DTC). As riding on city streets can require more attention to the surroundings than to throttle inputs, the Urban Riding Mode instantly changes the Diavel to provide a manageable and confident ride. Power output is reduced to 100hp and DTC is further enhanced to level 5 to provide a higher system intervention during the most chaotic of stop-start traffic. The Touring Riding Mode is programmed to produce 162hp, however, with a smoother, more user-friendly power delivery. Rear end traction is enhanced by increasing DTC system intervention to level 4, specifically intended for an enjoyable and relaxing ride ideal for long distance and ensuring maximum comfort for both the rider and passenger. The Sport Riding Mode provides the Diavel rider with an adrenalin-fuelled 162hp ride and enables the rider to have full-on throttle response for maximum acceleration. Ensuring the full Testastretta 11° experience, the sport mode also lowers the DTC system intervention to level 3 for riders who prefer their performance a little closer to the traction limit.
Engine
Testastretta 11°
The Diavels heart is the Ducati Testastretta 11° - developed directly from the incredibly powerful, world-beating race engines of Ducati Corse. Ducati’s Testastretta 11° harnesses the immense power of the Superbike engine and makes it smooth and adaptable, a massive step forward in balancing high-performance with an enjoyable ride. For an engine with brute power on tap when needed and smooth, user-friendliness available for an effortless and comfortable ride, Ducati revised the configuration of the cam timing with particular focus on the valve overlap angle. The overlap angle is defined as the interval of crankshaft rotation, measured in degrees, during which both the intake and exhaust valves are open at the same time. This overlap occurs between the end of the exhaust stroke and the start of the intake stroke. High performance engines, which are subject to compromising smoothness for extreme power delivery, use high values of this parameter in order to benefit from the pressure waves to improve engine performance by maximising volumetric efficiency. On the Testastretta 11° engine, this angle has been reduced from 41°, used in the Testastretta Evoluzione engine which powers the 1198, to 11°. As a result, the fresh inlet charge flow is less compromised by the exiting exhaust gases, resulting in a much smoother combustion in addition to improved fuel economy and lower exhaust emissions.
Ride-by-Wire
The Ride-by-Wire (RbW) system is an electronic interface between the Diavel’s twistgrip and engine, which configures an ideal power response depending on the riding mode selected. The twistgrip no longer has a throttle cable connected directly to the throttle body butterflies, but instead delivers a signal to a control unit, which in turn operates the butterfly opening electronically. The RbW system uses three different mappings to regulate the power delivery: 162hp with a sports-type delivery 162hp with a progressive delivery suitable for touring 100hp with progressive delivery for city use
15,000 miles between major services
Constant investment in quality by design, advanced materials and engineering techniques have enabled the distance between major service intervals (valve clearance check) to be increased to a highly competitive 15,000 miles. This has been achieved with the introduction of new valve seat materials, improved combustion efficiency and temperature management designed into the Testastretta 11° engine.
Twin lateral radiators
The technical solution employed for keeping the frontal lines of the Diavel clean was to place two highly efficient lateral radiators on both sides of the bike. These well-ducted units, located beneath the fuel tank, use aerodynamics to help draw air flow through the radiators and are assisted by high-flow electric fans when required. The design combines form and function to enhance the muscular shape of the bike.
Exhaust system
The massive 58mm (2.28in) section exhaust headers lead the 2-1-2 system through power-enhancing equal lengths that enable the Diavel’s efficient power delivery. The engine management system dedicates a lambda probe to each header, providing precise fueling via a large airbox, while the stylish cannon-style, vertically stacked silencers carry catalytic converters to provide Euro 3 conformity and electronically controlled mid-section valve optimises exhaust pressures throughout the rev-range.
Slipper clutch
The transmission features an oil bath clutch with “slipper” function and super-light feel at the lever. Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the reduction of the clutch spring rates. This results in a much lighter clutch lever at the handlebar, ideal in stop-start traffic or during long journeys. When the drive force is reversed (over-run), the same mechanism reduces the pressure on the clutch plates, enabling them to provide a race-like “slipper” action, which reduces the destabilizing effect of the rear-end under aggressive down-shifting and provides a much smoother feeling when closing the throttle or down-shifting under normal riding conditions.
Power and Torque
With its 162hp and colossal 94lb-ft (127.5Nm) of torque, the Diavel Testastretta 11° engine is all about authentic Ducati Desmodromic performance. The revised intake and exhaust ports combined with radical adjustment of the cam timing have enabled Ducati to achieve a fantastic torque curve at low rpm, which remains strong through a wider rev-range. The increase in bottom-end torque is managed by Ducati’s Ride-by-Wire (RbW) system to considerably enhance the Diavel’s effortless ridability, while ensuring plenty of power remains on tap for high-rpm riding.
Chassis
Marzocchi forks with fork sliders in super low-friction
The Diavel uses 50mm Marzocchi front forks with fork sliders black-finished in super low-friction diamond-like carbon (DLC). These forks are fully adjustable for spring pre-load, compression and rebound damping. The forks are gripped by a slash-cut triple-clamp - cast aluminium for the lower and forged for the upper - with a rubber-mounted riser to tapered alloy bars. With a rake of 28°, trail of 130mm (5.12in) and an offset of 24mm (0.945in), the set-up provides a sure-footed and agile front-end for incredible handling and 70° of total steering lock for maximum manoeuvrability.
Marchesini nine-spoke wheels Marchesini nine-spoke wheels
The Diavel Carbon has custom shop-finished, lightweight, forged, turned and milled rims by Marchesini that not only score an impressive total weight saving of 5.5lb (2.5kg), but also look spectacular. These highly intricate nine-spoke wheels highlight the delicate machining in natural aluminium set against a black finish.
Fuel tank and air intakes
The Diavel’s 17l (4.5 gal US) fuel tank represents an integral part of the bike’s overall styling. Its wide, long lines sweep down from the headlamp assembly into the seat and rear sub-frame to create a seamless profile. While the focal point of the tank is the high resolution display panel, the steel tank skin and well-sculpted knee panels add a solid feel to the Diavel and a high tech composite look to the Diavel Carbon. On each side of the front of the tank are massive air intakes formed in aluminium to feed the engine’s large airbox.
Single-sided swingarm
The long, die-cast aluminium, single-sided swingarm provides great “feel” at the rear-end with a wheelbase of 1590mm (62.6in) and a stance that provides lean angles of up to 41°.
Braking system
The Diavel front brakes use Brembo’s incredibly powerful Monobloc callipers, which deliver outstanding performance actuated by new integral alloy master cylinders with unique shape reservoirs sporting milled tops. The 4-piston, twin radially-mounted callipers grip 320mm discs, while a single 265mm disc on the rear is gripped by a two piston calliper, also by Brembo. The Diavel Carbon uses specially milled aluminium disc carriers which have natural aluminium coloured recesses machined around the weight saving cut-outs in contrast to the carrier’s black finish around the centre. Typical of Ducati, these top-of-the-range components provide outstanding levels of braking and set a new benchmark in this category.
Diavel frame assembly
The signature Ducati Trellis frame uses large diameter, light gauge tubing with two lateral die-cast aluminium sections that flow into the rear subframe. This achieves massive torsional rigidity while remaining lightweight and compact. The two sections form a rear-end structure by attaching onto either side of a complex techno-polymer component.
Twin-level seat
The Diavel’s twin-level seat is wide, comfortable and beautifully shaped to fit the flowing lines of the machine and at 770mm (30.3in), has one of the lowest seat heights in the Ducati range. That low seating position, in addition to a low slung chassis set-up that weighs in at just 210kg (463lb) - 207kg (456lb) for the Diavel Carbon - enables the rider to get both feet on the ground for a sure-footed and confident stance. The seat also comes with a beautifully shaped and easily removable single seat cover, which is formed in carbon fibre on the Diavel Carbon.
Sachs rear suspension
The Diavel have a Sachs rear suspension unit slung low under the chassis in a horizontal position, operated by a progressive pull-rod linkage from the swingarm. Adjustable in compression and rebound damping, the unit uses a handy control for easy spring pre-load adjustment.
Equipment
Ducati Traction Control (DTC)
The racing-derived Ducati Traction Control (DTC) is a highly intelligent system which acts as a filter between the rider’s right hand and the rear tyre. Within milliseconds, DTC is able to detect and control rear wheel-spin, considerably increasing the bike’s active safety and performance. The system offers eight levels of “sensitivity”, each programmed with an amount of rear wheel-spin tolerance. These levels are in line with progressive levels of riding skills classified from one to eight. Level one is programmed to offer the least amount of interaction for sport-oriented riders, while level eight uses the most amount of interaction for complete confidence. DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider by accessing the new user-friendly set-up menu. A “default”option is available to easily return all settings to factory pre-sets.
ABS
The Diavel is equipped with the latest, most compact, Ducati Bosch-Brembo ABS system as original equipment, providing a major contribution towards performance control. Top Brembo components combined with Bosch ABS, the special Diavel chassis configuration and Pirelli’s Enhanced Patch Technology (EPT) result in a braking performance even greater than that of the awesome Ducati Superbikes.
Split-level instrumentation
The upper LCD display is mounted on the bar-riser and provides main information such as speed and rpm, in addition to warning lights, time and temperature. The lower, full colour Thin Film Transistor (TFT) display is styled into the fuel tank and provides an incredibly clear account of current Riding Mode, gear selection and DTC setting as well as total mileage and trips. Used on mobile phones and computers, TFT technology is a variant of LCD and displays easy-to-read high resolution graphics. The Diavel’s TFT display goes one step further by using the sensitivity of its surrounding light to decide upon black or white background colour. When stationary, the lower display also doubles as the latest user-friendly control panel to personalise DTC and RbW settings within each Riding Mode before saving.
Lighting
The Diavel uses two clear vertical strips of LED lighting to provide tail and brake light illumination as well as directional indicators. The strips follow the precise line of the under-seat panelling, providing great visibility of the rear-end while keeping the external lines of the bike clean. The front directional indicators are clear lens LED strips mounted vertically down the leading edge of the lateral radiator covers. The headlamp gives the Diavel immediate Ducati identity and is supported by an aluminium outer body. The light uses high and low beam double reflectors to illuminate the road ahead, in addition to incorporating a horizontal strip of LED positioning lights for optimum visibility.
Pirelli tyres
Ducati’s technical partner, Pirelli, worked with the Diavel’s designers and engineers to develop the incredible new Diablo Rosso II tyres. While the front uses a conventional 120/70x17 section with a new tread pattern designed for enhanced wet weather performance, the 240/45x17 rear represents the latest innovation in tyre design with a sport-oriented profile being applied to custom-style width. The massive rear employs bi-compound technology to enable high grip levels at full lean angle while providing high mileage and uses Enhanced Patch Technology (EPT) to maximise the contact patch at all angles. The tread pattern and compounds deliver great performance in all conditions, especially the wet.
Hands-free ignition
The Diavel’s ignition is actuated by an electronic key in the rider’s pocket, which communicates with the motorcycle when within a distance of approximately 2 metres (6.5ft). The motorcycle recognises the dedicated key code and automatically enables the bike’s systems. Pressing the key-on switch then activates all systems to “on” and the engine is ready to be started. The electronic key, which internally consists of a radio circuit, externally doubles as a mechanical flip-key, required to open the seat and fuel tank cap. When parking the motorcycle, an electronic lock can be actuated on the steering simply by applying full steering-lock and pressing the ignition-off button a second time.
Controls
The Diavel handlebar shape and arrangement leaves the rider feeling comfortable and in command. Wide, tapered section aluminium bars with new custom designed provide a clean and minimalist set-up, while stylish, forged-aluminium supported mirrors deliver a generous view to the rear. Switchgear control is taken care of by Ducati’s latest and most minimalist design with slim-line bodies housing easy-to-use switches and buttons and a unique weapons-like “trigger catch” that slides down to cover the starter button when activating the kill-switch. While the indicator cancel button doubles as a scroll-and-select for fast and easy Riding Mode changes, switches above and below serve to navigate the new high-resolution display control panel.
Footpegs and grab-rail
Passengers on the Diavel will appreciate the way the slender passenger footpegs ingeniously fold down from the rear sub-frame as well as the innovative, T-bar shaped grab-rail assembly, which slides out from the rear of the seat. Deployed from a mechanism under the seat, the grab-rail provides a comfortable and confidence-inspiring grip for the passenger, while the shape perfectly blends into the lines of the tail-piece when retracted. Both passenger-friendly features are crafted in forged aluminium and shot-peened for strength and uniform finish before being black anodised to become almost invisible when folded away.
Innovative number plate mount
Employing the double strip of multi-functional LEDs for the rear lighting of the Diavel required an innovative solution for the mounting of the number plate. The unique design uses mounts on the rear hub of the single-sided swingarm to extend an elegant and Ducati signature Trellis framework around the 240 section rear tyre, enabling a central mounting of the plate. The framework carries a hidden power feed to dedicated LED illumination for the number plate, eliminating any reliance on the main rear lights and creating a clean feature around the rear of the seat. This design solution represents the first of its kind and an example of the incredible attention to the Diavel’s detail.
Carbon fiber
Carbon fibre is used for the tank panels, single-seat cover and front mudguard to reduce weight and apply a race-like feature that runs deep in the DNA of Ducati.
USA MSRP - $TBA USD
Engine
TYPE
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
DISPLACEMENT
1198.4cc
BORE X STROKE
106 x 67.9mm
COMPRESSION RATIO
11,5:1
POWER
162hp (119kW) @ 9500rpm
TORQUE
94lb-ft (127.5Nm) @ 8000rpm
FUEL INJECTION
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
EXHAUST
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
PRIMARY DRIVE
Straight cut gears, ratio 1.84:1
FINAL DRIVE
Front sprocket 15; Rear sprocket 43
CLUTCH
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Chassis
FRAME
Tubular steel Trellis frame
WHEELBASE
1590mm (62.6in)
RAKE
28°
FRONT SUSPENSION
Marzocchi DLC coated 50mm fully adjustable usd forks
FRONT WHEEL TRAVEL
120mm (4.7in)
FRONT WHEEL
Marchesini forged and machined 9-spoke 3.50 x 17
FRONT TYRE
120/70 ZR 17 Pirelli Diablo Rosso II
REAR SUSPENSION
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
120mm (4.7in)
REAR WHEEL
Marchesini forged and machined 9-spoke 8.00 x 17
REAR TYRE
240/45 ZR17 Pirelli Diablo Rosso II
FRONT BRAKE
2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
REAR BRAKE
265mm disc, 2-piston floating calliper with ABS
FUEL TANK CAPACITY
17l - (5.3US gal)
DRY WEIGHT
207kg (456lb)
INSTRUMENTS
Handlebar mounted instrumentation with LCD display: speed, rpm, time, coolant temp. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, ABS status, oil pressure, fuel reserve. Tank mounted instrumentation with TFT colour display: gear selected, air temp, battery voltage, trips 1 & 2, fuel reserve trip, average and actual fuel consumption, average speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)
Red and Matt Carbon (red / black) - Glossy and Matt Carbon (racing black / black)
VERSIONS
Dual seat
SEAT HEIGHT
770mm (30.3in)
DDA
Not available on this model
DTC
Standard equipment
ABS
Standard equipment
Emissions
STANDARD
Euro 3
Source: http://www.totalmotorcycle.com/photos/2011models/2011-Ducati-DiavelCarbon.htm
“ The Diavel is a true Ducati, born from a passion for motorcycling and designed to deliver authentic Ducati performance in every respect. ”
Hard to be seen, easy to be noticed.Even when disappearing in a split second, everyone will always be captivated. This is the magic of Diavel.
The design sets new standards in beauty, innovation and sophistication, while outstanding agility and handling are encased within a muscular body which moves with 162 hp. Its astonishing power can be managed in three different Riding Modes and with the assurance of the Ducati Safety Pack (ABS + Ducati Traction Control). Ducati has created something truly magic.
Preceded by rumors, photos stolen and a lot of waiting, we received word is final. EICMA, the International Motorcycle Exhibition in Milano at Rho-November 2 to 7, will mark the first official appearance in public for the new Ducati.
Livery and specifications are defined and Ducati is ready to make his dream a reality. While waiting for the official presentation of Ducati also comes the anticipation of the name of this great news that, inspired by an expression in the dialect of Bologna, will be called "DIAVEL", or "devil."
A name that has its own particular history that stems from an incident that occurred during the development of the bike.
In fact, once set up the first prototype, with all the technical staff around the new creature "made in Borgo Panigale," a sentence in the dialect of Bologna said the original lines of the bike and winning, "ignurant comm 'to diavel!" Which, bringing the statement in Italian, it would sound "is as bad as the devil."
From that moment, "DIAVEL" became the name of "inside" the bike, to replace the internal code of the project. The decision to keep it for the production was, as you can imagine, a logical consequence.
Genesis similar to this, even if we are talking about almost 20 years ago, characterized another icon Ducati, the Monster, whose name was inspired by the now famous statement, also in the dialect of Bologna, "is just the 'n monster! "or" is just a monster. "
As for Monster, the name DIAVEL then becomes the expression of that unique, passionate, further characterized by high technology and a unique design distinguishes every Ducati motorcycle produced.
At the same time it is also easy to see what this new bike and, while bound to tradition Ducati, destined to mark an important new chapter in respect of the aesthetic and performance.
The new Ducati DIAVEL be extremely accurate in every detail, carved in every muscle, comfortable and innovative. As in any real Ducati, the performance will play a very important role. Torque, power and dynamic behavior will be a new benchmark, thanks to the Testastretta engine 11 ° - the same as the Multistrada 1200 - and weighs only 207 kg dry, which promises superbike acceleration and speed and agility to change direction .
A relaxed riding position, the suspension comfort and safety are guaranteed by the ABS, traction control and standard riding mode, will satisfy even those riders who love to drive in peace, enjoying the street, landscape and all the characteristics of This new dream Ducati.
You can avoid eyes, but not admiration.The Diavel project was born when Ducati designers applied their wish-list of bike “basic instincts” to a blank canvas. With a “what if?” approach to creating a dream bike, they sketched inspiring shapes which became a lower and longer motorcycle. “The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks,” explains the team at Ducati Design responsible for the project.
Superior trust and confidence.
The stance of the Diavel is that of readiness, dominance, and confidence bordering on superiority. With lateral radiators adding muscle to its broad “shoulders,” which then taper down across the engine and into the belly-fairing with oil cooler, the athlete took shape.
The Diavel project was born when Ducati designers applied their wish-list of bike “basic instincts” to a blank canvas. With a “what if?” approach to creating a dream bike, they sketched inspiring shapes which became a lower and longer motorcycle.
“The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks,” explains the team at Ducati Design responsible for the project.
“With the front wheel kept close to the Diavel’s body and using the short tail of a sport bike, we were able to blend this muscular design with a chassis that matched.”
The stance of the Diavel is that of readiness, dominance, and confidence bordering on superiority. With lateral radiators adding muscle to its broad “shoulders,” which then taper down across the engine and into the belly-fairing with oil cooler, the athlete took shape.
A massive 240 section rear tyre was a perfect example of how Diavel designers used a no-compromise attitude when applying their wish list of features. Ducati’s philosophy for innovation has always been to push the boundaries of design in the name of exciting motorcycles.
Ducati Diavel Design
Rider and passenger comfort
The Diavel's twin-level seat is wide, comfortable and beautifully shaped to fit the flowing lines of the machine and at 770mm (30.3in), has one of the lowest seat heights in the Ducati range.That low seating position, in addition to a low slung chassis set-up that weighs in at just 210kg (463lb) - 207kg (456lb) for the Diavel Carbon - enables the rider to get both feet on the ground for a sure-footed and confident stance.Passengers on the Diavel will appreciate the way the slender passenger footpegs ingeniously fold down from the rear sub-frame as well as the innovative, T-bar shaped grab-rail assembly, which slides out from the rear of the seat.
The Diavel’s twin-level seat is wide, comfortable and beautifully shaped to fit the flowing lines of the machine and at 770mm (30.3in), has one of the lowest seat heights in the Ducati range.
That low seating position, in addition to a low slung chassis set-up that weighs in at just 210kg (463lb) - 207kg (456lb) for the Diavel Carbon - enables the rider to get both feet on the ground for a sure-footed and confident stance.
Passengers on the Diavel will appreciate the way the slender passenger footpegs ingeniously fold down from the rear sub-frame as well as the innovative, T-bar shaped grab-rail assembly, which slides out from the rear of the seat.
Both passenger-friendly features are crafted in forged aluminium and shot-peened for strength and uniform finish before being black anodised to become almost invisible when folded away.
Lighting
The headlamp gives the Diavel immediate Ducati identity and is supported by an aluminium outer body.
The light uses high and low beam double reflectors to illuminate the road ahead, in addition to incorporating a horizontal strip of LED positioning lights for optimum visibility.
The Diavel uses two clear vertical strips of LED lighting to provide tail and brake light illumination as well as directional indicators.
The strips follow the precise line of the under-seat panelling, providing great visibility of the rear-end while keeping the external lines of the bike clean. The front directional indicators are clear lens LED strips mounted vertically down the leading edge of the lateral radiator covers.
Innovative number plate mount
Employing the double strip of multi-functional LEDs for the rear lighting of the Diavel required an innovative solution for the mounting of the number plate.
The unique design uses mounts on the rear hub of the single-sided swingarm to extend an elegant and Ducati signature Trellis framework around the 240 section rear tyre, enabling a central mounting of the plate.
The framework carries a hidden power feed to dedicated LED illumination for the number plate, eliminating any reliance on the main rear lights and creating a clean feature around the rear of the seat. This design solution represents the first of its kind and an example of the incredible attention to the Diavel's detail.
Fuel tank and air Intakes
The Diavel's 17l (4.5 gal US) fuel tank represents an integral part of the bike's overall styling.
Its wide, long lines sweep down from the headlamp assembly into the seat and rear sub-frame to create a seamless profile. While the focal point of the tank is the high resolution display panel, the steel tank skin and well-sculpted knee panels add a solid feel to the Diavel and a high tech composite look to the Diavel Carbon.
On each side of the front of the tank are massive air intakes formed in aluminium to feed the engine's large airbox.
Their design is completely functional and contributes to the 162hp produced by the Diavel Testastretta 11° power plant.
Controls
The Diavel handlebar shape and arrangement leaves the rider feeling comfortable and in command.Wide, tapered section aluminium bars with new custom designed, integral brake and clutch master-cylinders by Brembo complete with milled reservoir tops, provide a clean and minimalist set-up, while stylish, forged-aluminium supported mirrors deliver a generous view to the rear.
Switchgear control is taken care of by Ducati's latest and most minimalist design with slim-line bodies housing easy-to-use switches and buttons and a uniqueweapons-like “trigger catch” that slides down to cover the starter button when activating the kill-switch. While the indicator cancel button doubles as a scroll-and-select for fast and easy Riding Mode changes, switches above and below serve to navigate the new high-resolution display control panel.
The name
The name “Diavel” was inspired by the Bolognese dialect word for “devil”
One day, early in the development process of the bike, the first prototype was assembled and wheeled out in front of a group of Ducati engineers and technicians who were viewing the complete motorcycle for the first time. One person looking from the rear of the bike saw its silhouette and exclaimed in Bolognese dialect: “Ignurà nt comm' al Diavel!” Which means: “Evil, just like the devil!”
Reminiscent of how the “Monster” was named almost 20 years ago, the Diavel now follows the same Bolognese tradition, shaping the future of motorcycling while staying faithful to its heritage.
2011 Ducati Diavel Performance
Breathless in 2,5 seconds.Built to have a commanding presence, though lightweight and agile like all Ducatis. Stunning looks, 162hp and 207kg (456lb) of authentic Ducati performance drives a comfortable sport lifestyle that could only be dreamt of before.A specially engineered 240 section rear tyre combined with famous Ducati chassis technology serves up mind-blowing handling and lean angles which defy the laws of physics, whether carving through curves on your favourite road or just riding out for a night on the town.
Merging the worlds of power and style has never been achieved with such convincing precision.
Diavel Testastretta 11° - ready for sport and cruise
The heart of the Diavel is the Ducati Testastretta 11° - developed directly from the incredibly powerful, world-beating race engines of Ducati Corse.Ducati's Diavel Testastretta 11° harnesses the immense power of the Superbike engine and makes it smooth and adaptable, a massive step forward in balancing high-performance with an enjoyable ride.With its 162hp and colossal 94lb-ft (127.5Nm) of torque, the Diavel Testastretta 11° engine is all about authentic Ducati Desmodromic performance.
Diavel Testastretta 11° - ready for sport and cruiseThe heart of the Diavel is the Ducati Testastretta 11° - developed directly from the incredibly powerful, world-beating race engines of Ducati Corse. Ducati’s Diavel Testastretta 11° harnesses the immense power of the Superbike engine and makes it smooth and adaptable, a massive step forward in balancing high-performance with an enjoyable ride.
With its 162hp and colossal 94lb-ft (127.5Nm) of torque, the Diavel Testastretta 11° engine is all about authentic Ducati Desmodromic performance.
The revised intake and exhaust ports combined with radical adjustment of the cam timing have enabled Ducati to achieve a fantastic torque curve at low rpm, which remains strong through a wider rev-range. The increase in bottom-end torque is managed by Ducati’s Ride-by-Wire (RbW) system to considerably enhance the Diavel’s effortless ridability, while ensuring plenty of power remains on tap for high-rpm riding.
For an engine with brute power on tap when needed and smooth, user-friendliness available for an effortless and comfortable ride, Ducati revised the configuration of the cam timing with particular focus on the valve overlap angle. The overlap angle is defined as the interval of crankshaft rotation, measured in degrees, during which both the intake and exhaust valves are open at the same time. This overlap occurs between the end of the exhaust stroke and the start of the intake stroke. High performance engines, which are subject to compromising smoothness for extreme power delivery, use high values of this parameter in order to benefit from the pressure waves to improve engine performance by maximising volumetric efficiency.
On the Testastretta 11° engine, this angle has been reduced from 41°, used in the Testastretta Evoluzione engine which powers the 1198, to 11°. As a result, the fresh inlet charge flow is less compromised by the exiting exhaust gases, resulting in a much smoother combustion in addition to improved fuel economy and lower exhaust emissions.
The massive 58mm (2.28in) section exhaust headers lead the 2-1-2 system through power-enhancing equal lengths that enable the Diavel’s efficient power delivery. The engine management system dedicates a lambda probe to each header, providing precise fueling via a large airbox, while the stylish cannon-style, vertically stacked silencers carry catalytic converters to provide Euro 3 conformity and electronically controlled mid-section valve optimises exhaust pressures throughout the rev-range.
Twin lateral radiators - positioned on either side of the bike - cool the Diavel Testastretta 11° engine. This unique feature combines with a new 64mm water pump impeller to increase flow rate by 35% at high rpm, enabling highly efficient cooling from the stylish air ducts.
Transmission
The Diavel’s gearbox uses high-strength materials to manage the increased power output and enhanced grip generated by the 240 section rear tyre, which also requires the use of a 16mm longer gearbox output shaft for drive chain routing.
The transmission features an oil bath clutch with “slipper” function and super-light feel at the lever.
Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the reduction of the clutch spring rates. This results in a much lighter clutch lever at the handlebar, ideal in stop-start traffic or during long journeys
The Diavel’s gearbox uses high-strength materials to manage the increased power output and enhanced grip generated by the 240 section rear tyre, which also requires the use of a 16mm longer gearbox output shaft for drive chain routing.
The transmission features an oil bath clutch with “slipper” function and super-light feel at the lever. Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the reduction of the clutch spring rates. This results in a much lighter clutch lever at the handlebar, ideal in stop-start traffic or during long journeys. When the drive force is reversed (over-run), the same mechanism reduces the pressure on the clutch plates, enabling them to provide a race-like “slipper” action, which reduces the destabilizing effect of the rear-end under aggressive down-shifting and provides a much smoother feeling when closing the throttle or down-shifting under normal riding conditions.
The Diavel’s clutch and alternator covers have been restyled with enhanced detail and shaping, as have the cam belt covers with a new aluminium mid-section.
24,000 kilometres (15,000 miles) between major services
Constant investment in quality by design, advanced materials and engineering techniques have enabled the distance between major service intervals (valve clearance check) to be increased to a highly competitive 24,000 kilometres (15,000 miles).
This has been achieved with the introduction of new valve seat materials, improved combustion efficiency and temperature management designed into the Testastretta 11° engine.
Frame assembly
The signature Ducati Trellis frame uses large diameter, light gauge tubing with two lateral die-cast aluminium sections that flow into the rear subframe. This achieves massive torsional rigidity while remaining lightweight and compact.
The two sections form a rear-end structure by attaching onto either side of a complex techno-polymer component.
The long, die-cast aluminium, single-sided swingarm provides great “feel” at the rear-end with a wheelbase of 1590mm (62.6in) and a stance that provides lean angles of up to 41°.
Suspension
The Diavel uses black-bodied 50mm Marzocchi front forks. These forks are fully adjustable for spring pre-load, compression and rebound damping.
The forks are gripped by a slash-cut triple-clamp - cast aluminium for the lower and forged for the upper - with a rubber-mounted riser to tapered alloy bars.
With a rake of 28°, trail of 130mm (5.12in) and an offset of 24mm (0.945in), the set-up provides a sure-footed and agile front-end for incredible handling and 70° of total steering lock for maximum manoeuvrability.
The Diavel Carbon uses the same suspension as the Diavel, but with fork sliders black-finished in super low-friction diamond-like carbon (DLC).
Both versions of the Diavel have a Sachs rear suspension unit slung low under the chassis in a horizontal position, operated by a progressive pull-rod linkage from the swingarm. Adjustable in compression and rebound damping, the unit uses a handy control for easy spring pre-load adjustment.
Wheels and tyres
The Diavel rolls on stunning, custom 14-spoke wheels with machine-finished detailing. The front rim is 3.5x17, while the rear, which is “flow-formed” for enhanced structure and lightness, boasts a massive 8x17 rim.
The Diavel Carbon has custom shop-finished, lightweight, forged, turned and milled rims by Marchesini that not only score an impressive total weight saving of 5.5lb (2.5kg), but also look spectacular.
The Diavel rolls on stunning, custom 14-spoke wheels with machine-finished detailing. The front rim is 3.5x17, while the rear, which is “flow-formed” for enhanced structure and lightness, boasts a massive 8x17 rim.
The Diavel Carbon has custom shop-finished, lightweight, forged, turned and milled rims by Marchesini that not only score an impressive total weight saving of 5.5lb (2.5kg), but also look spectacular. These highly intricate nine-spoke wheels highlight the delicate machining in natural aluminium set against a black finish.
Ducati’s technical partner, Pirelli, worked with the Diavel’s designers and engineers to develop the incredible new Diablo Rosso II tyres. While the front uses a conventional 120/70x17 section with a new tread pattern designed for enhanced wet weather performance, the 240/45x17 rear represents the latest innovation in tyre design with a sport-oriented profile being applied to custom-style width.
The massive rear employs bi-compound technology to enable high grip levels at full lean angle while providing high mileage and uses Enhanced Patch Technology (EPT) to maximise the contact patch at all angles. The tread pattern and compounds deliver great performance in all conditions, especially the wet.
This new design of tyre enabled Ducati to achieve the style they had envisioned for the Diavel without compromising the authentic Ducati performance of the chassis. This partnership of parallel development between chassis and tyre design has contributed massively to Ducati “changing the rules” in this segment.
Braking system & ABS
The Diavel front brakes use Brembo's incredibly powerful Monobloc callipers, which deliver outstanding performance actuated by new integral alloy master cylinders with unique shape reservoirs sporting milled tops.
The 4-piston, twin radially-mounted callipers grip 320mm discs, while a single 265mm disc on the rear is gripped by a two piston calliper, also by Brembo.
The system is equipped with the latest, most compact, Ducati Bosch-Brembo ABS system as original equipment on both versions, providing a major contribution towards performance control.
The Diavel front brakes use Brembo's incredibly powerful Monobloc callipers, which deliver outstanding performance actuated by new integral alloy master cylinders with unique shape reservoirs sporting milled tops.
The 4-piston, twin radially-mounted callipers grip 320mm discs, while a single 265mm disc on the rear is gripped by a two piston calliper, also by Brembo.
The Diavel Carbon uses specially milled aluminium disc carriers which have natural aluminium coloured recesses machined around the weight saving cut-outs in contrast to the carrier's black finish around the centre.
Typical of Ducati, these top-of-the-range components provide outstanding levels of braking and set a new benchmark in this category.
The system is equipped with the latest, most compact, Ducati Bosch-Brembo ABS system as original equipment on both versions, providing a major contribution towards performance control. Top Brembo components combined with Bosch ABS, the special Diavel chassis configuration and Pirelli's Enhanced Patch Technology (EPT) result in a braking performance even greater than that of the awesome Ducati Superbikes.
2011 Ducati Diavel Technology
The Diavel incorporates the very latest in innovative Ducati technologies.
Ride-by-Wire, Ducati Traction Control and Ducati Riding Modes deliver a confidence-inspiring sophistication that enables riders to fully enjoy the power of the Testastretta 11° engine.
Lateral radiators
The technical solution employed for keeping the frontal lines of the Diavel clean was to place two highly efficient lateral radiators on both sides of the bike.These well-ducted units, located beneath the fuel tank, use aerodynamics to help draw air flow through the radiators and are assisted by high-flow electric fans when required. The design combines form and function to enhance the muscular shape of the bike.
Split-level instrumentation
The Diavel's instrumentation is a masterpiece of cutting-edge technology.The upper LCD display provides main information such as speed and rpm, in addition to warning lights, time and temperature.
The lower, full colour Thin Film Transistor (TFT) display is styled into the fuel tank and provides an incredibly clear account of current Riding Mode, gear selection and DTC setting as well as total mileage and trips. Used on mobile phones and computers, TFT technology is a variant of LCD and displays easy-to-read high resolution graphics.The Diavel's TFT display goes one step further by using the sensitivity of its surrounding light to decide upon black or white background colour. When stationary, the lower display also doubles as the latest user-friendly control panel to personalise DTC and RbW settings within each Riding Mode before saving.
Hands-free ignition
The Diavel's ignition is actuated by an electronic key in the rider's pocket, which communicates with the motorcycle when within a distance of approximately 2 metres (6.5ft).
The motorcycle recognises the dedicated key code and automatically enables the bike's systems.
The electronic key externally doubles as a mechanical flip-key, required to open the seat and fuel tank cap.
When parking the motorcycle, an electronic lock can be actuated on the steering simply by applying full steering-lock and pressing the ignition-off button a second time.
The Ride-by-Wire (RbW)
The RbW system is an electronic interface between the Diavel's twistgrip and engine, which configures an ideal power response depending on the riding mode selected.The twistgrip no longer has a throttle cable connected directly to the throttle body butterflies, but instead delivers a signal to a control unit, which in turn operates the butterfly opening electronically. The RbW system uses three different mappings to regulate the power delivery: 162hp with a sports-type delivery, 162hp with a progressive delivery suitable for touring, and 100hp with progressive delivery for city use.
Riding Modes
The Diavel incorporates the very latest in innovative Ducati technologies, including the recently introduced electronic Riding Modes.
Selectable from the left-hand switchgear - even while riding - the choice of three pre-set modes are programmed to instantly change the character of the Diavel. The three modes are enabled by combining class-leading technologies such as Ride-by-Wire (RbW) and Ducati Traction Control (DTC).
The Diavel incorporates the very latest in innovative Ducati technologies, including the recently introduced electronic Riding Modes.
Selectable from the left-hand switchgear - even while riding - the choice of three pre-set modes are programmed to instantly change the character of the Diavel. The three modes are enabled by combining class-leading technologies such as Ride-by-Wire (RbW) and Ducati Traction Control (DTC).
The RbW system administers different mappings to regulate power delivery by interpreting the rider’s throttle input, while the world-beating DTC uses eight levels of system interaction to enhance control by reducing rear wheel-spin under heavy acceleration.
Although each mode has pre-set values of RbW and DTC, each of these two elements can be finely adjusted within each of the three Riding Modes and saved to create a personalised riding experience.
Sport
The Sport Riding Mode provides the Diavel rider with an adrenalin-fuelled 162hp ride and enables the rider to have full-on throttle response for maximum acceleration.
Ensuring the full Testastretta 11° experience, the sport mode also lowers the DTC system intervention to level 3 for riders who prefer their performance a little closer to the traction limit.
Touring
The Touring Riding Mode is also programmed to produce 162hp, however, with a smoother, more user-friendly power delivery.
Rear end traction is enhanced by increasing DTC system intervention to level 4, specifically intended for an enjoyable and relaxing ride ideal for long distance and ensuring maximum comfort for both the rider and passenger.
Urban
As riding on city streets can require more attention to the surroundings than to throttle inputs, the Urban Riding Mode instantly changes the Diavel to provide a manageable and confident ride.
Power output is reduced to 100hp and DTC is further enhanced to level 5 to provide a higher system intervention during the most chaotic of stop-start traffic.
Ducati Traction Control
The racing-derived Ducati Traction Control (DTC) is a highly intelligent system which acts as a filter between the rider’s right hand and the rear tyre.
Within milliseconds, DTC is able to detect and control rear wheel-spin, considerably increasing the bike’s active safety and performance.
The system offers eight levels of “sensitivity”, each programmed with an amount of rear wheel-spin tolerance: level one is programmed to offer the least amount of interaction for sport-oriented riders, while level eight uses the most amount of interaction for complete confidence.
DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider by accessing the new user-friendly set-up menu. A “default”option is available to easily return all settings to factory pre-sets.
2011 Ducati Diavel - United States of America Specifications
USA MSRP - $TBA USD
Engine
Type
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement
1198.4cc
Bore x Stroke
106 x 67.9mm
Compression ratio
11.5:1
Power
162hp (119kW) @ 9500rpm
Torque
94lb-ft (127.5Nm) @ 8000rpm
Fuel injection
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Transmission
Gearbox
6 speed
Ratio
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Primary drive
Straight cut gears, ratio 1.84:1
Final drive
Front sprocket 15; Rear sprocket 43
Clutch
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Chassis
Frame
Tubular steel Trellis frame
Wheelbase
1590mm (62.6in)
Rake
28°
Front suspension
Marzocchi 50mm fully adjustable usd forks
Front wheel travel
120mm (4.7in)
Front wheel
14-spoke in light alloy 3.50 x 17
Front Tyre
120/70 ZR 17 Pirelli Diablo Rosso II
Rear suspension
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear wheel travel
120mm (4.7in)
Rear wheel
14-spoke in light alloy 8.00 x 17
Rear tyre
240/45 ZR17 Pirelli Diablo Rosso II
Front brake
2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
Rear brake
265mm disc, 2-piston floating calliper with ABS
Fuel tank capacity
17l - (5.3 US gal)
Dry weight
210kg (463lb)
Instruments
Handlebar mounted instrumentation with LCD display: speed, rpm, time, coolant temp. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, ABS status, oil pressure, fuel reserve. Tank mounted instrumentation with TFT colour display: gear selected, air temp, battery voltage, trips 1 & 2, fuel reserve trip, average and actual fuel consumption and speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS.
Warranty
2 years unlimited mileage
Body Colour (frame/wheel)
Red (red / black) - Pearl White Silk and Metallic Black (black / black)
Versions
Dual seat
Seat height
770mm (30.3in)
DDA
Not available on this model
DTC
Standard equipment
ABS
Standard equipment
Emissions
Standard
Euro 3
Source: http://www.totalmotorcycle.com/photos/2011models/2011-Ducati-Diavel.htm
